SwiftUI-实现弹出提示框模拟AirPods连接

字数统计: 765阅读时长: 4 min

 2024/11/04   Share

SwiftUI实现底部弹出提示框。swiftUI, Animation, Layout

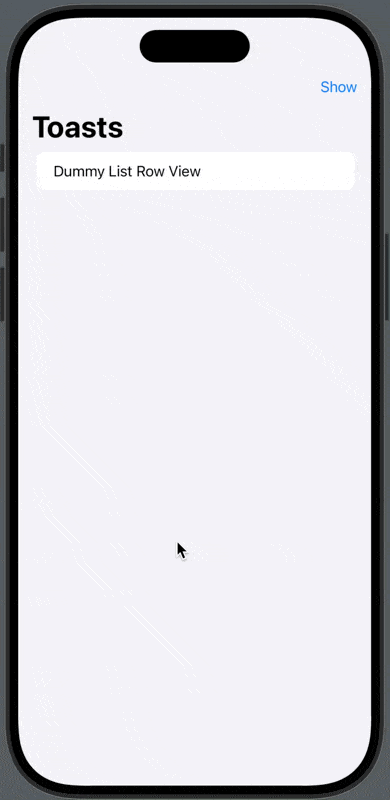

功能：点击按钮弹出Toast，堆叠式，点击可全屏展示，左侧滑可移除，移除全部退出全屏。

剖析:

toast显示在底部修饰符: .overlay(alignment: .bottom)

isExpanded: 弹出一个toastsView, 该视图内部通过isExpanded属性,可控制layout (v轴,z轴) 切换布局.
isDeleting: 侧滑移除toastsView的item.

layout 内部逻辑
layout 内部布局每个 item toast展示样式.

modifier: Gesture 手势, DragGesture(拖拽), 可控制侧滑, 拿到xOffset, 逻辑判断移除(赋值isDeleting).
modifier：.offset(x: xOffset) 可实现侧滑.
modifer： .visualEffect 对每个item实现scale, offset 操作.
modifier： .zindex() 控制删除时从底部移除.
modifier： .transition(.asymetric) 使用复合转换动画, 丛edge: .leading 左侧移除.

代码

Per toast所需信息

struct Toast: Identifiable {
    private(set) var id: String = UUID().uuidString
    var content: AnyView

    init(content: @escaping (String)-> some View) {
        self.content = .init(content(id))
    }

    /// View Properties
    var offsetX: CGFloat = 0
    var isDeleting: Bool = false
}

toastsView 作用的上层任意视图

extension View {
    @ViewBuilder
    func interactiveToasts(_ toasts: Binding<[Toast]>) -> some View {
        self
            .frame(maxWidth: .infinity, maxHeight: .infinity)
            .overlay(alignment: .bottom) {
                ToastsView(toasts: toasts)
            }
    }
}

组合视图

fileprivate struct ToastsView: View {
    @Binding var toasts: [Toast]
    @State private var isExpanded: Bool = false

    var body: some View {
        ZStack(alignment: .bottom) {
            if isExpanded {
                Rectangle()
                    .fill(.ultraThinMaterial)
                    .ignoresSafeArea()
                    .onTapGesture {
                        isExpanded = false
                    }
            }

            let layout = isExpanded ? AnyLayout(VStackLayout(spacing: 10)) : AnyLayout(ZStackLayout())

            layout {
                ForEach($toasts) { $toast in
                    let index = (toasts.count - 1) - (toasts.firstIndex(where: { $0.id == toast.id}) ?? 0)

                    toast.content
                        .offset(x: toast.offsetX) // 向左移动删除手势。
                        .gesture(
                            DragGesture()
                                .onChanged { value in
                                    let xOffset = value.translation.width < 0 ? value.translation.width : 0
                                    toast.offsetX = xOffset
                                }
                                .onEnded { value in
                                    let xOffset = (value.velocity.width / 2) + value.translation.width

                                    if -xOffset > 200 {
                                        /// Remove Toast
                                        $toasts.delete(toast.id)
                                    } else {
                                        /// Reset Toast to initial position
                                        toast.offsetX = 0
                                    }
                                }
                        )
                        .visualEffect { [isExpanded] content, proxy in
                            content
                                .scaleEffect(isExpanded ? 1 : scale(index), anchor: .bottom)
                                .offset(y: isExpanded ? 0 : offsetY(index))
                        }
                        .zIndex(toast.isDeleting ? 1000 : 0) // 删除的时候放下面
                        .frame(maxWidth: .infinity)
                        .transition(.asymmetric(insertion: .offset(y: 100), removal: .move(edge: .leading)))
                }
            }
            .onTapGesture {
                isExpanded.toggle()
            }
            .padding(.bottom, 15)
        }
        .animation(.bouncy, value: isExpanded)
        .onChange(of: toasts.isEmpty) { oldValue, newValue in
            if newValue {
                isExpanded = false
            }
        }
    }

    /* 0 15 30  这三个区别*/
    nonisolated func offsetY(_ index: Int) -> CGFloat {
        let offset = min(CGFloat(index) * 15, 30)
        return -offset
    }

    nonisolated func scale(_ index: Int) -> CGFloat {
        let scale = min(CGFloat(index) * 0.1, 1)
        return 1 - scale
    }
}

extension Binding<[Toast]> {
    func delete(_ id: String) {
        if let toast = first(where: { $0.id == id }) {
            toast.wrappedValue.isDeleting = true
        }
        withAnimation(.bouncy) {
            self.wrappedValue.removeAll(where: { $0.id == id })
        }
    }
}

外部控制添加的每个Toast具体信息

/// 自定义 Toast View
@ViewBuilder
func ToastView(_ id: String) -> some View {
    HStack(spacing: 12) {
        Image(systemName: "airpods.pro")

        Text("iJustine's Airpods")
            .font(.callout)
    }
    .foregroundStyle(Color.primary)
    .padding(.vertical, 12)
    .padding(.horizontal, 15)
    .background {
        Capsule()
            .fill(.background)
            .shadow(color: .black.opacity(0.06), radius: 3, x: -1, y: -3)
            .shadow(color: .black.opacity(0.06), radius: 2, x: 1, y: 3)
    }
}

使用

****使用者可以是任何视图, 使用扩展的View , 通过.interactiveToasts($toasts)这个ViewBuilder****
var body: some View {
        NavigationStack {
            List {
                Text("Dummy List Row View")
            }
            .navigationTitle("Toasts")
            .toolbar {
                ToolbarItem(placement: .topBarTrailing) {
                    Button("Show") { showToast() }
                }
            }
        }
        .interactiveToasts($toasts)
    }

    func showToast() {
        withAnimation(.bouncy) {
            let toast = Toast { id in
                ToastView(id)
            }
            toasts.append(toast)
        }
    }
